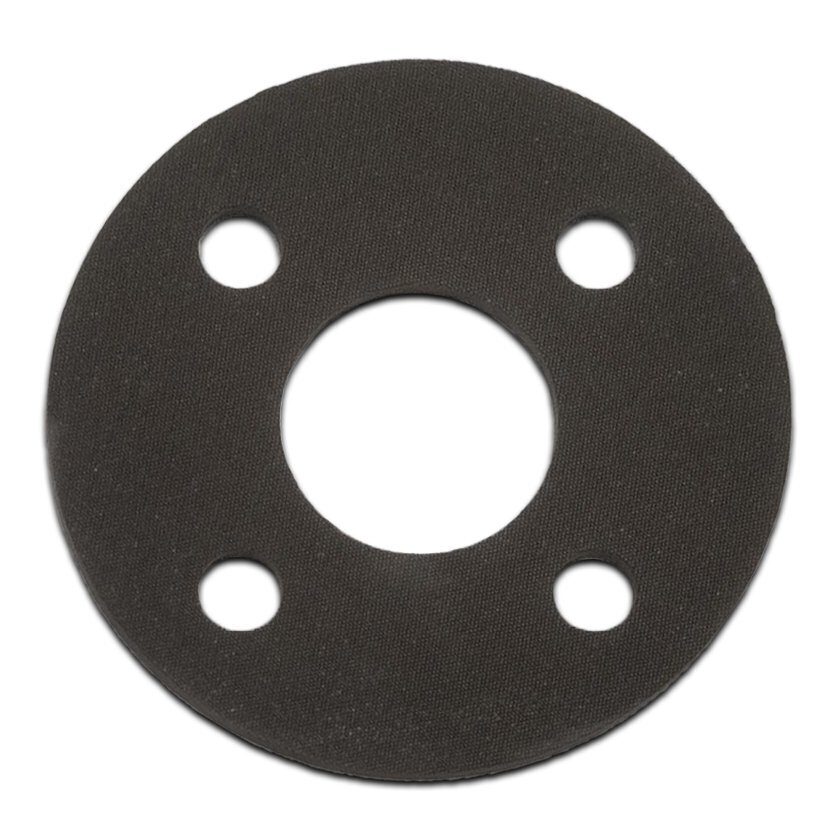

• Material: EPDM Synthetic Rubber • Table D/E • Imperial Inch (In) EPDM Table D/E Full Face Gasket 1 1/2” / 50mm
Information Outside Diameter 134mm Inside Diameter 62mm PCD 99mm 4 Holes 15mm DIa EPDM Thickness Normally 3mm Used with PVC U, ABS, ( Polypropylene Socket Fusion ) Pressure Pipe & Fittings All the above are a general guide tolerances may differ slightly Dilute Acids Excellent , Concentrated Acids Fair Oils Not Recommended , Petrol Not Recommended Temperature range: -40C to 120C
For further information about PVC-U , ABS . Polypropylene pressure pipes & fittings please click on our Tech Talk
