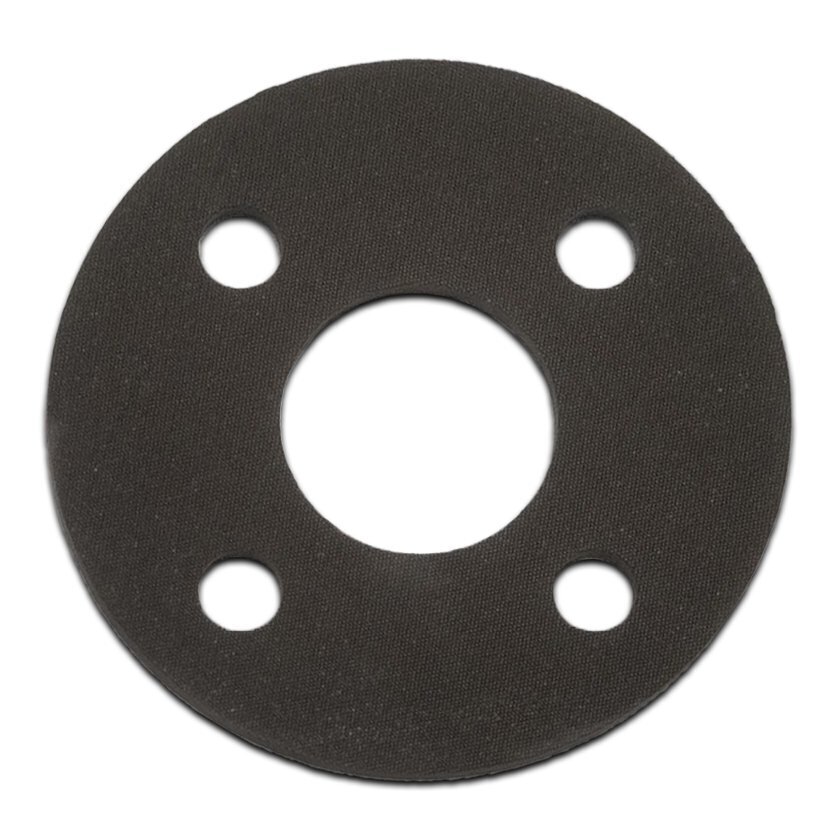

1" / 32mm FPM ASA 150 Full Face Gasket

• Material: FPM Synthetic Rubber • ASA 150 • Imperial Inch (In)
Full Face Gasket FPM 1” / 32mmASA 150
Information
Outside Diameter 108mm
Inside Diameter 42mm
PCD 79mm
4 Holes 16mm DIa
FPM Thickness Normally 3mm
Used With PVC-U , PVC-C , ABS , ( Polypropylene Socket Fusion ) Full Face Flange & Pressure Pipes & Fittings.
Chemical Resistance
Ozone Excellent , Dilute Acids & Bases Excellent
Concentrated Acids & Bases Excellent
Oils , Solvents , Very Good
Temperature Range -20C To 250 -275CFor further information about PVC-U , PVC-C , ABS ,( Polypropylene Socket Fusion ) pressure pipes and fittings please click on our Tech Talk.
