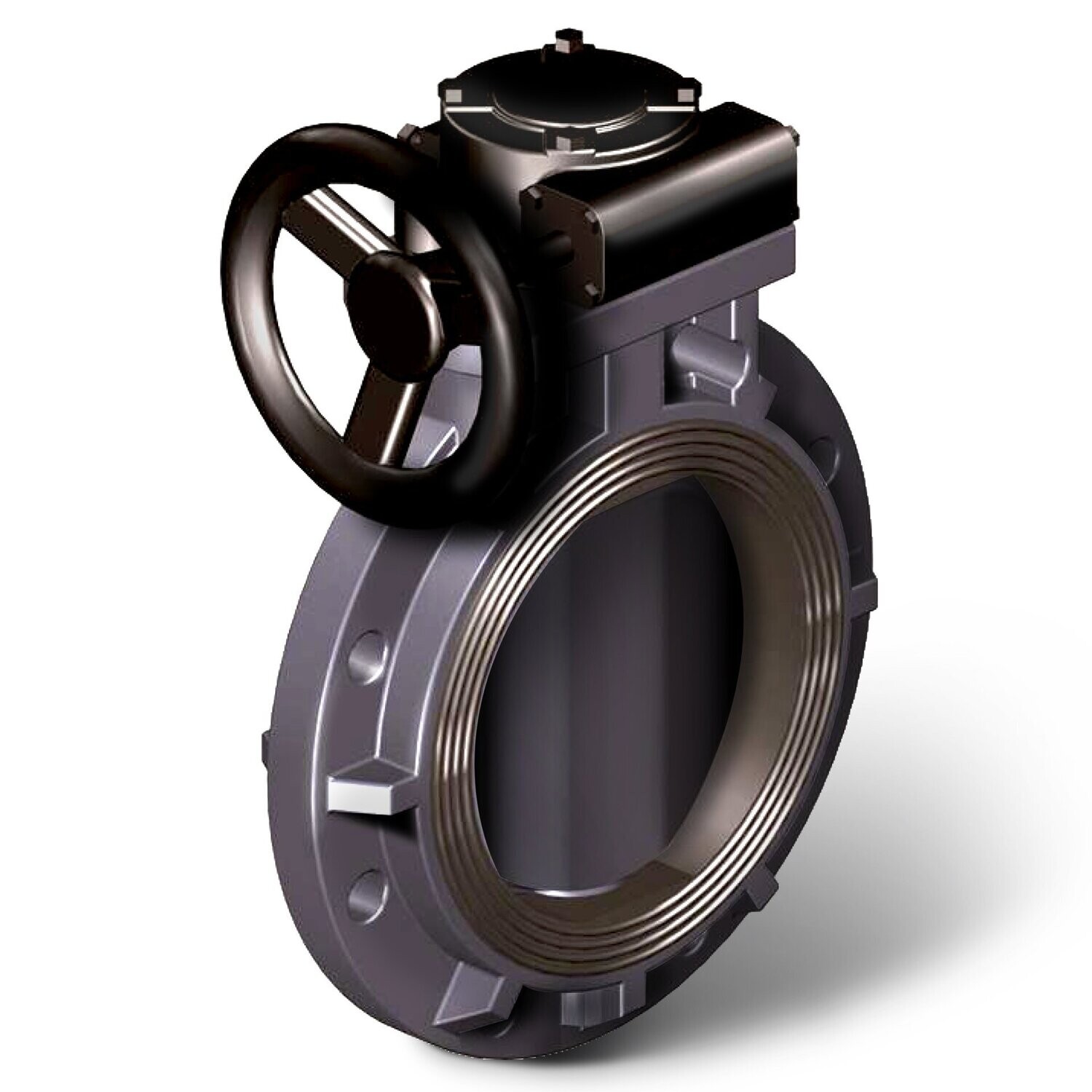

Body Material: UPVC • Handwheel Gearbox • PN10/16 & ANSI Drilling • Seals & O Rings Material: EPDM
This type of valve has the advantage of a robust construction, with a one-piece body and a symmetrical and solid centered butterfly, ensuring a strong sealing on the elastomer seal in both flow directions. • Installation on the piping of this valve must be done in the open position. • The valve is equipped with a Handwheel Gearbox. • The irreversible handwheel gearbox enables stopping and position holding while facilitating operation. • Gearboxes without grease nipple are lubricated for life • Gearboxes with a grease nipple are to be lubricated once a year or every 500 manoeuvres.
Torque without Load: 800 N.m Weight wihout Gearbox: 69Kg Weight with Gearbox: 112Kg
Suitable for both DIN & ANSI Drilling Standards DIN = Drilling in accordance with EN 1092-1 PN10/PN16 ANSI = Drilling in accordance with EN1759-1/ASME B16.5 Class 150
