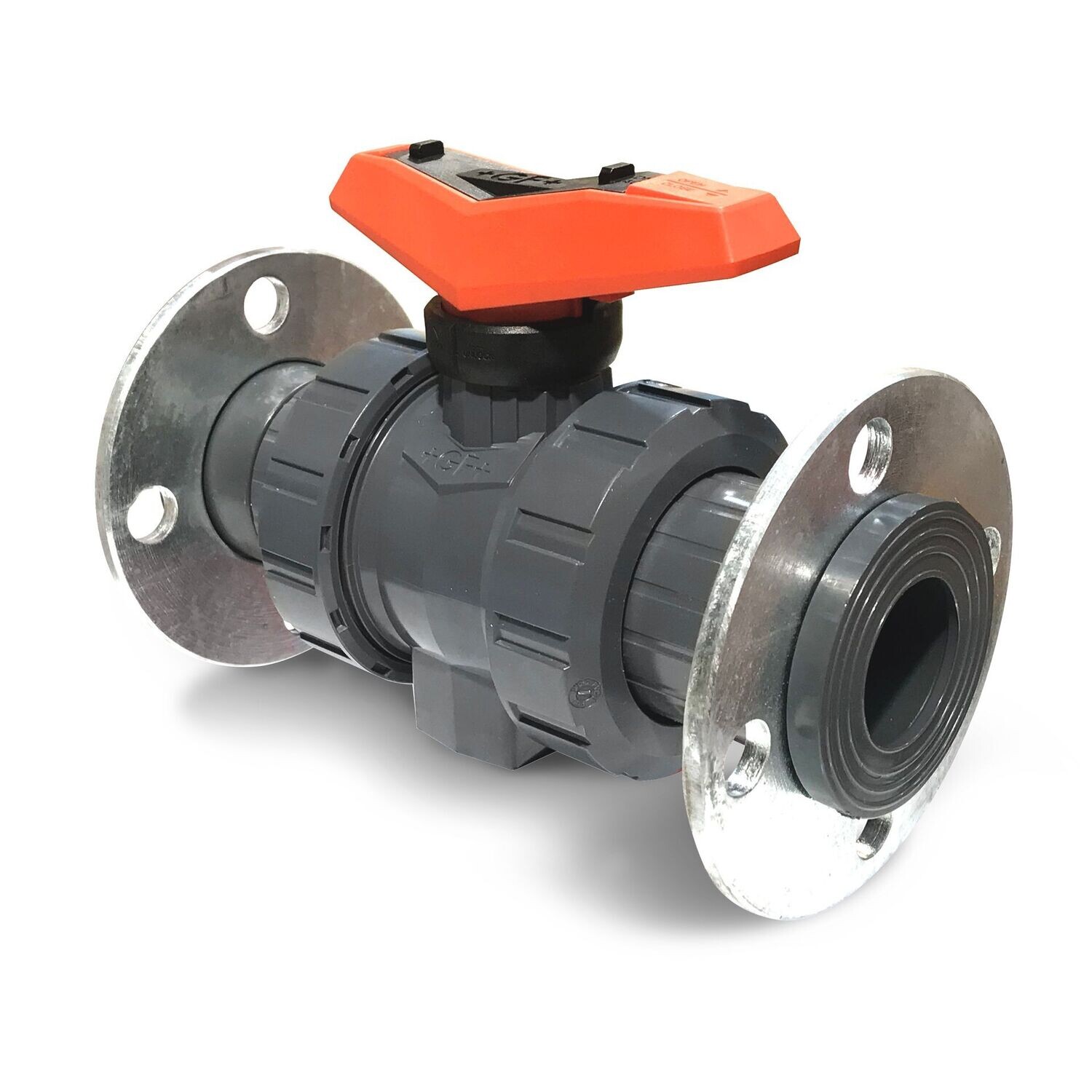

3/4" | 25mm GF 546 Pro with custom flanged ends

Customised flanged valve assembly. The ultimate convenience service.
Receive 546 pro ball valve with flanged ends that is ready to implement into your pipeline instantly.
No adhesive drying times - Get the line up and running as soon as you receive.
Instant installation upon receipt - no mess, no fuss.
Suitable for connecting to both 3/4" and 25mm stub flange ends

• Customise the flange face to face length: Min RL: 134mm - Max RL: 190mm
• Customise backing ring drill standards. Choose from NP 10/16 | ASA 150 | Table D/E

Product is custom fabricated and consists of:
Georg Fischer 546 pro ball valve, 2 stub flange ends, 2 Steel backing rings and 2 pieces of PN15 UPVC pipe.

All fabricated in our in-house fabrication suite by our pipefitting engineers.
Please be aware the finished overall length will be subject tolerances of +/- 2mm .
Does not include bolts or gaskets.

Measurements
Please provide your required length (RL) - Enter required measurement from flange face to flange face.
Don't forget to allow for your chosen gasket thickness.
