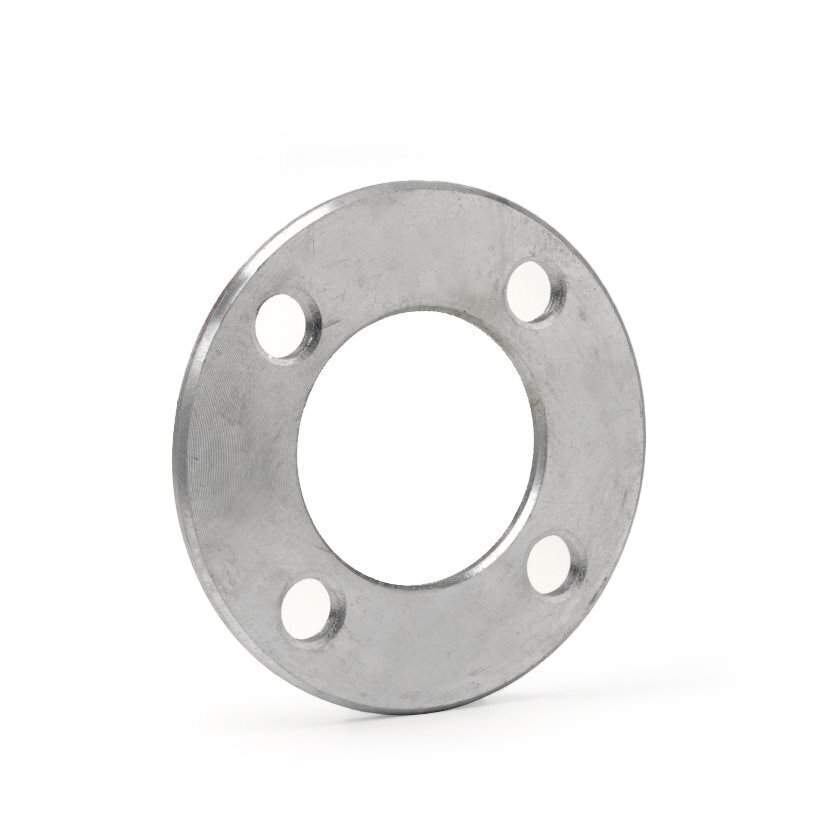

3/4" | 25mm Galvanised Backing Ring NP 16

• Galvanised Mild Steel • Drill Standard: NP16 • Imperial Inch (In) / Metric
Information
Galvanised Backing Ring Table PN10/16 3/4 “/ 25mm DN 20
Outside Diameter 105mm
Inside Diameter 34mm
PCD 75mm
4 Holes 14mm Dia
Galvanised Ring Thickness Normally 7mm
Used with PVC U, ABS, (Polypropylene Socket Fusion ) Pressure Pipes & Fittings

All the above are a general guide tolerances may differ slightly.
