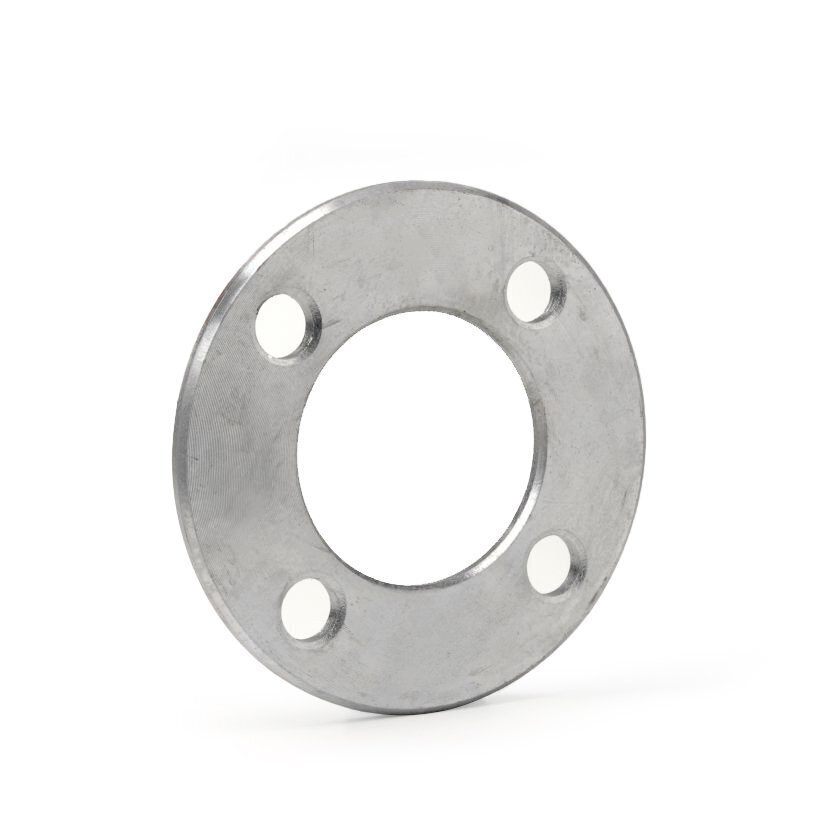

4" | 110mm Galvanised Backing Ring Table D/E

• Galvanised Mild Steel • Drill Standard: Table D / E • Imperial Inch (In) / Metric
Information
Galvanised Backing Ring Table D/E 4” / 110mm DN 100
Outside Diameter 216mm
Inside Diameter 133mm
PCD 178mm
8 Holes 18mm Dia
Galvanised Ring Thickness Normally 10mm
Used with PVC U, ABS, (Polypropylene Socket Fusion ) Pressure Pipes & Fittings

All the above are a general guide tolerances may differ slightly.
