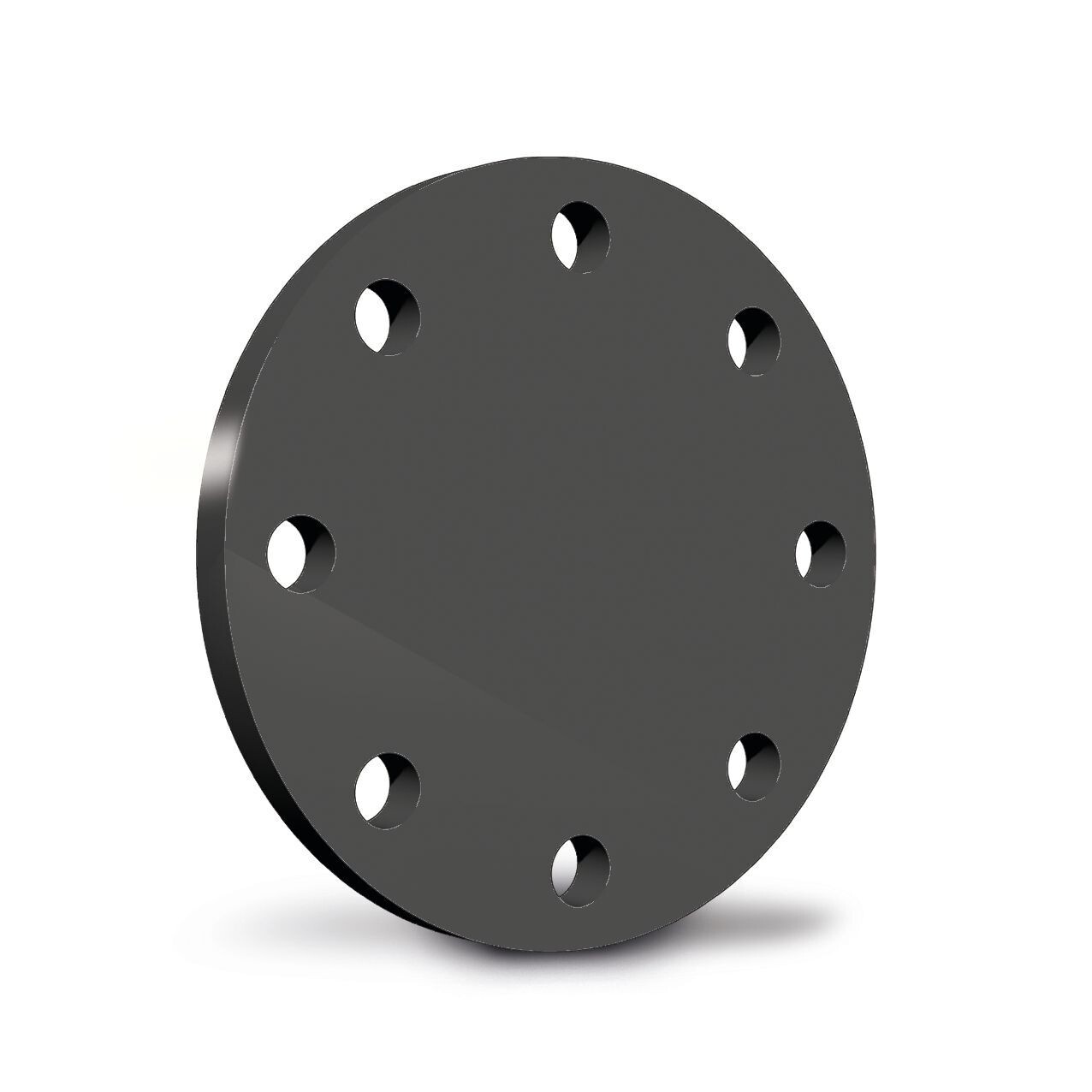

Flat profile blanking plate machined from a single sheet of material. Designed for use with 4" or 110mm UPVC pipework, to be used in conjunction with a full face flange and gasket of BS10 Table D/E drilling.
• Manufactured from high grade UPVC sheet
Designation
Overall Diameter
Thickness
Drill Standard
PCD
Bolt Size
# Holes
4" | 110mm
220mm
20mm
BS10 - Table D/E
178mm
M16
8
NB: The 4" designation in Table D is 4 Hole and in Table E it is 8 Hole. We offer 8 Hole so that the product will fit both Table D & E flanges, if using this product for blanking a Table D flange, there will be 4 'spare' holes in the blanking plate with no corresponding holes in the flange.
