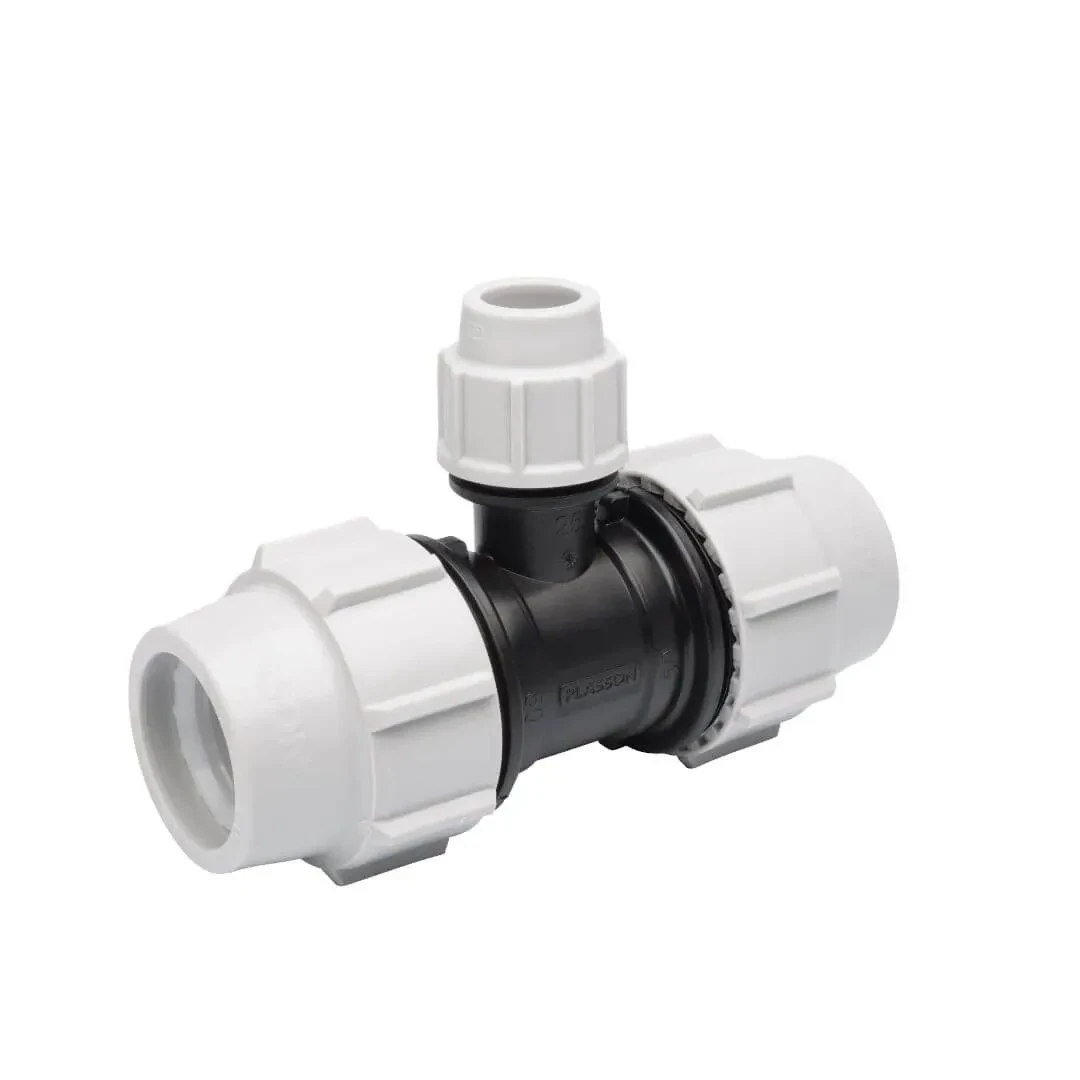

40 x 25 x 40mm Plasson® 90° Reducing Tee Compression Fitting 7340
Trusted PLASSON® Brand. WRAS & KIWA Approved
Connect two lengths of 40mm pipe together with 25mm pipe branching off at a 90° angle.
Pressure rated upto 16 Bar
• Body Material: Polypropylene
• Easy Installation without the need for fusion or solvent cement
• Proven long term performance
The inner O-rings are positioned in special grooves machined into the inside of each fitting, the PLASSON® O-ring is always in the optimum position for sealing.
This innovative design means the fitting seals water-tight as soon as the pipe passes through the O-ring. With PLASSON® compression fittings, the tightening of the nut prevents the pipe and fitting from moving apart, or blowing out, under pressure. The design also means the O-Ring can’t fall out and be damaged, contaminated or lost during installation.
Dimensions
d | d1 | A | H | E | E1 | l | l1 |
---|---|---|---|---|---|---|---|
40mm | 25mm | 84mm | 205mm | 82mm | 54mm | 84mm | 58mm |
