• Galvanised Mild Steel • Drill Standard: NP16 • Imperial Inch (In) / Metric Information

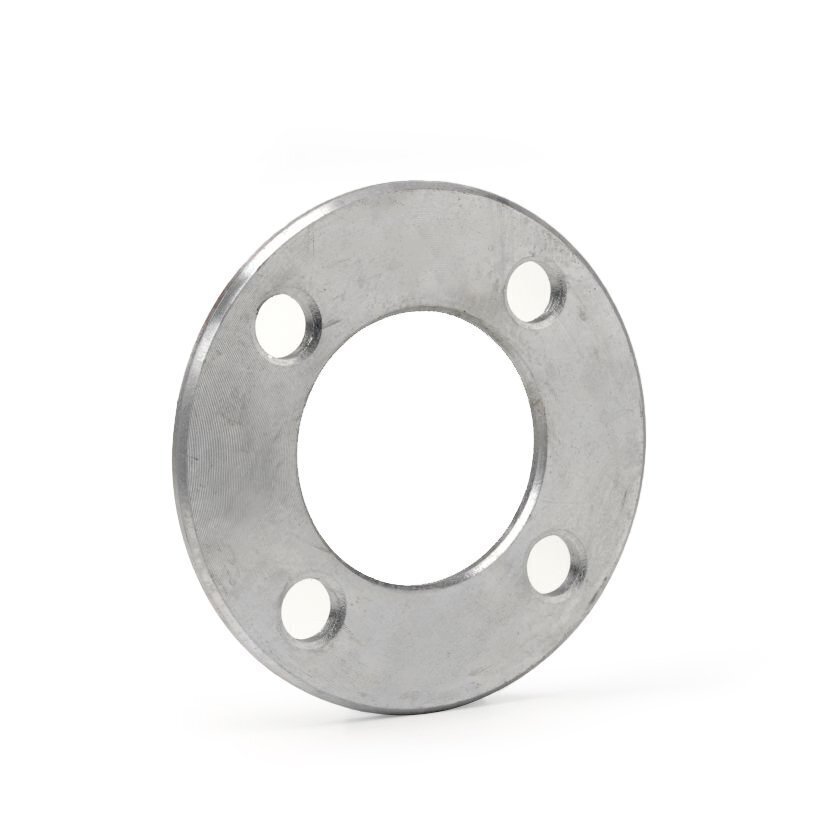

Galvanised Backing Ring Table PN10/16 8“/ 225mm DN 200 Outside Diameter 340mm Inside Diameter 250mm PCD 295mm 8 Holes 22mm Dia Galvanised Ring Thickness Normally 10mm Used with PVC U, ABS, (Polypropylene Socket Fusion ) Pressure Pipes & Fittings All the above are a general guide tolerances may differ slightly. For further information about pipes & fittings please click on our Tech Talk
