800mm | 32" Polypropylene SAFI Butterfly Valve | DN800 | EPDM or FPM | PN10/PN16 & ANSI

Body Material: Polypropylene • Handwheel Gearbox • PN10/16 & ANSI • Seal Material: EPDM or FPM

• Nominal Diameter: DN800
• Suitable for use with pipe of Outer Diameter 800mm or 32"
• Working Temperature: 0°c to 80°c

This type of valve has the advantage of a robust construction, with a one-piece body and a symmetrical and solid centered butterfly, ensuring a strong sealing on the elastomer seal in both flow directions.

• Installation on the piping of this valve must be done in the open position.
• The valve is equipped with a Handwheel Gearbox.
• The irreversible handwheel gearbox enables stopping and position holding while facilitating operation.
• Gearboxes without grease nipple are lubricated for life
• Gearboxes with a grease nipple are to be lubricated once a year or every 500 manoeuvres.

Weight with Gearbox: 233Kg

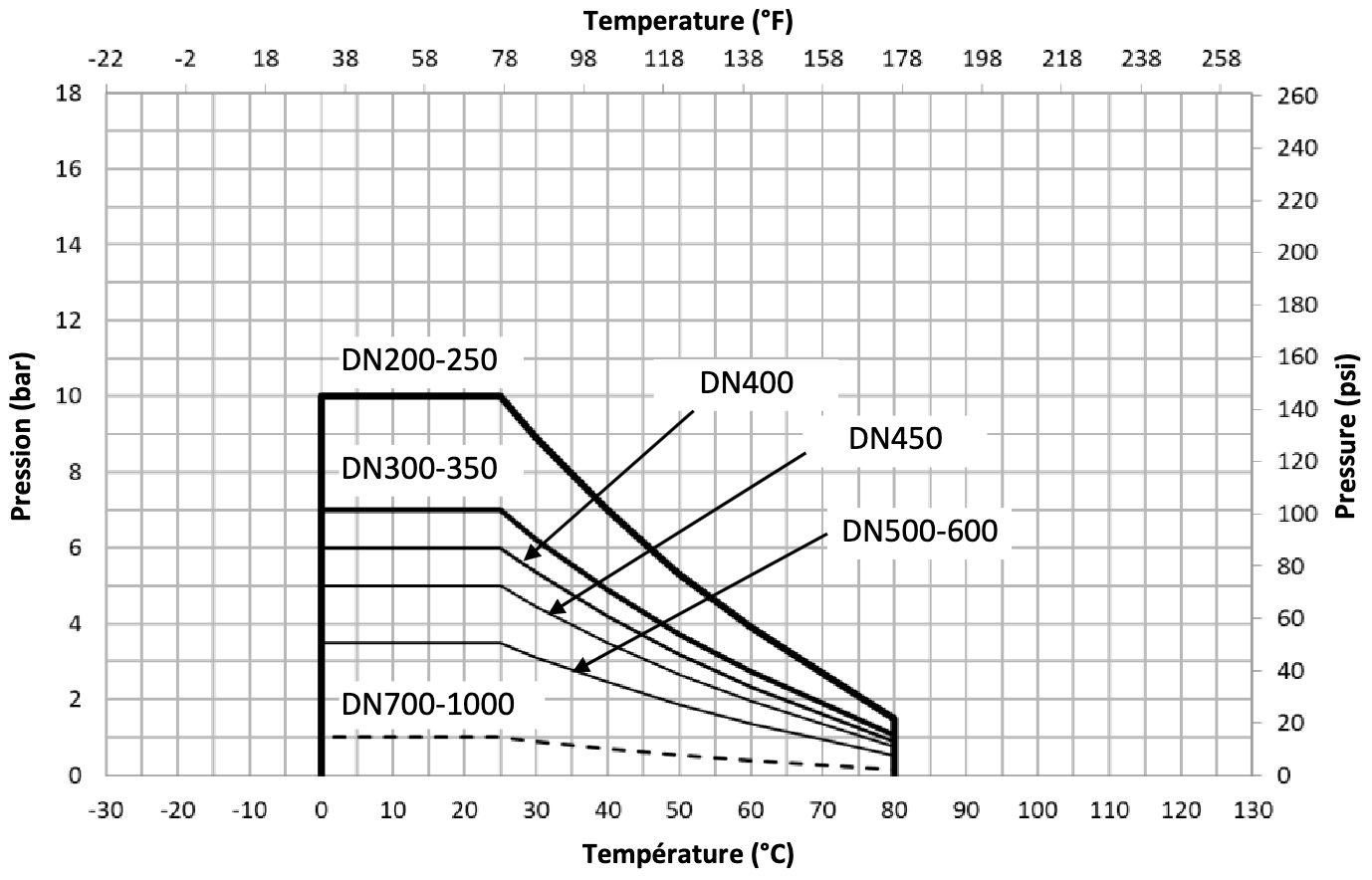

Pressure & Temperature

Please Note: Image is for illustration only. Design differs between size designations, for dimensions and full technical specification, please see the Manufacturer's data sheet below or give us a call and we'll be happy to help with any questions you may have.

Download Manufacturer's Full Technical Specification Sheet Here
