M12 x 40 Bolt Set - Bright Zinc Plated
£0.49
In stock
Product Details
EN 150458-1 Non-Preload Structural Bolting Assembly consisting of 1 Fully Threaded Setscrew, 2 Washers & 1 Nut.
| Setscrew | EN ISO 4017 | M12x40 | 8.8 |
| Nut | EN ISO 4032 | M12 | 8 |
| Washer | EN ISO 7089 | M12 |
This bolt diameter is suitable for following flange standards:
| PN10 Drilling: | ½" to 1" Pipe Sizes |
| PN16 Drilling: | ½" to ¾" Pipe Sizes |
| BS10 Table D/E: | ½" to 1¼" Pipe Sizes |
| ASA150: | ½" to ¾" Pipe Sizes |

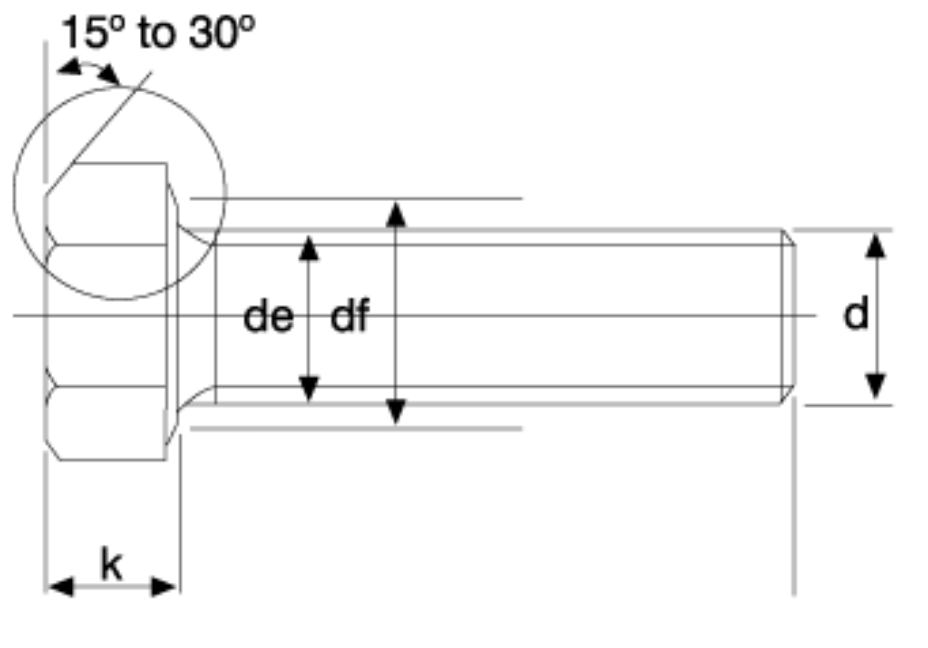

Dimensions
| Pitch of Thread (P) | Plain Portion (a) | Width Across Flats (s) | Width Across Corners (e) | Diameter of Washer Face (df) | Depth of Washer Face (c) | Radius Under Head (r) | Transition Diameter (de) | Thickness of Head (k) |
| 1.75 | Max 5.25 | Max 18.0 Min 17.57 | Min. 19.85 | Min. 16.47 | Max 0.6 Min 0.15 |
Min 0.6 | Max 13.7 | Max 7.68 Min 7.32 |
|
 |
 |
