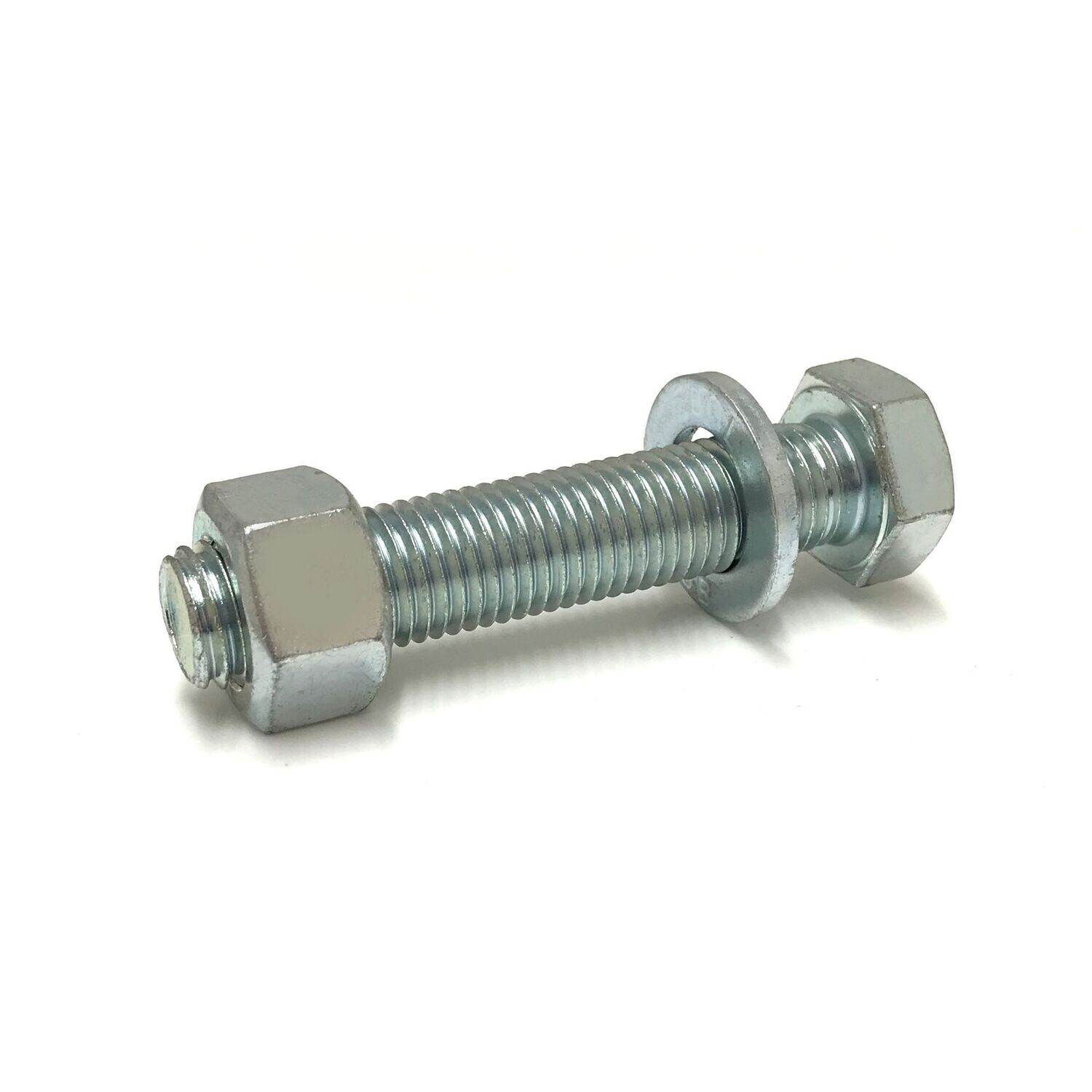

M16 x 80 Bolt Set - Bright Zinc Plated
£1.67
In stock
Product Details
EN 150458-1 Non-Preload Structural Bolting Assembly consisting of 1 Fully Threaded Setscrew, 2 Washers & 1 Nut.
| Setscrew | EN ISO 4017 | M16x100 | 8.8 |
| Nut | EN ISO 4032 | M16 | 8 |
| Washer | EN ISO 7089 | M16 |
This bolt diameter is suitable for following flange standards:
| PN10 Drilling: | 1¼" to 5" Pipe Sizes |
| PN16 Drilling: | 1" to 5" Pipe Sizes |
| BS10 Table D/E: | 1½" to 8" Pipe Sizes |
| ASA150: | 1½" to 4" Pipe Sizes |
Dimensions
| Pitch of Thread (P) | Plain Portion (a) | Width Across Flats (s) | Width Across Corners (e) | Diameter of Washer Face (df) | Depth of Washer Face (c) | Radius Under Head (r) | Transition Diameter (de) | Thickness of Head (k) |
| 2.00 | Max 6.0 | Max 24.0 Min 23.16 | Min. 26.17 | Min. 22.0 | Max 0.8 Min 0.2 |
Min 0.6 | Max 17.7 | Max 10.29 Min 9.71 |
|
 |
 |
