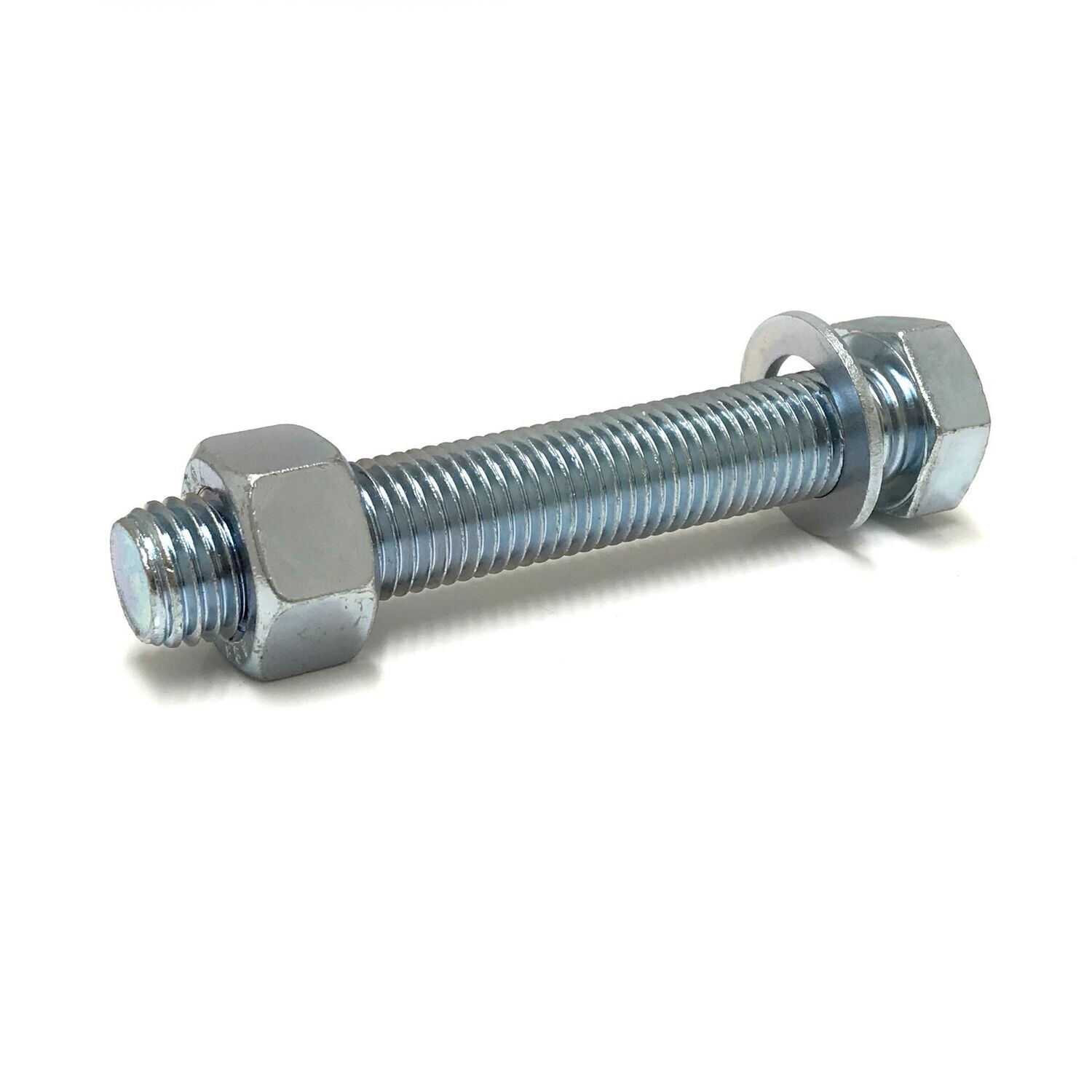

M20 x 120 Bolt Set - Bright Zinc Plated
£2.69
In stock
Product Details
EN 150458-1 Non-Preload Structural Bolting Assembly consisting of 1 Fully Threaded Setscrew, 2 Washers & 1 Nut.
| Setscrew | EN ISO 4017 | M20x120 | 8.8 |
| Nut | EN ISO 4032 | M20 | 8 |
| Washer | EN ISO 7091 | M20 |
This bolt diameter is suitable for following flange standards:
| PN10 Drilling: | 6" to 10" Pipe Sizes |
| PN16 Drilling: | 6" to 10" Pipe Sizes |
| BS10 Table D/E: | 10" Pipe Sizes |
| ASA150: | 5" to 8" Pipe Sizes |
Dimensions
| Pitch of Thread (P) | Plain Portion (a) | Width Across Flats (s) | Width Across Corners (e) | Diameter of Washer Face (df) | Depth of Washer Face (c) | Radius Under Head (r) | Transition Diameter (de) | Thickness of Head (k) |
| 2.50 | Max 7.50 | Max 30.0 Min 29.16 | Min. 32.95 | Min. 27.7 | Max 0.8 Min 0.2 |
Min 0.8 | Max 22.4 | Max 12.85 Min 12.15 |
|
 |
 |
